Quick Details

  • Machine Type: Abrator
  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HACHIEVE
  • Model Number: QX
  • Feature: Critical Cleaning / Residue Free, Rust / Corrosion Inhibitor
  • Fuel: Electric
  • Certification: CE, ALI,ISO
  • Use: Burnishing, Descaling / Stripping
  • Cleaning Process: Abrasive, steel shot ball
  • Cleaning Type: High speed shot blasting
  • Industry Used: Steel structure
  • Material: Metal / Coil
  • Power(W): 50~200kw
  • Dimension(L*W*H): Customilized
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Operate Type: Auto/ Manual
  • PLC Control: viable
  • Power (V): 220/380/400/440V
  • HZ: 50/60Hz
  • Phase: 1/2/3 Ph
  • Workpiece Dia.: 5-130mm
  • Blast wheel Qty.: 3~20
  • Blasting speed: 1~240m/min
  • Blasting standard: Sa2.5 / Sa3

Packaging & Delivery

Packaging Details: standard package
Delivery Detail: 30 days

Specifications

1.Wire rod Shot Blasting Machine
2.Workpiece Dia. 5-130mm
3.Blasting speed1~240m/min
4.Sa2.5 / Sa3
5.ISO9001-2

QX Wire rods shot blasting machine / Steel Bar Shot Blasting Machine / sand blasting machine



1 Shot Blasting Machine/ Sand blast Machine/Shot Blast Machine

Blasting speed 1~240m/min
3 Sa2.5 / Sa3
4 ISO9001-2000



Equipment  Main components:



Used to clean steel, wire. It is to the original state of the steel surface subjected to a strong shot, get rid of rust on it, welding slag and oxide, and thus obtain uniform metallic luster, in order to improve the quality and finishing of steel corrosion effects.



This machine is mainly used for bridge construction and manufacturing. In order to ensure the strict requirements to clean up the parts of our key technologies used in the design and ensure the following measures:



Impeller design layout using computer simulation, multi-angle, full-cast work pieces, so that uniform coverage of the projectile


Using the Swiss GF company's technology to produce type motor direct drive high efficiency impeller, can significantly improve the cleaning efficiency, satisfactory quality and effective clean-up blocking anti-burning motor to avoid the projectile to happen.


Separation device using the most advanced overflow sensor, full-screen pill residue curtain flow separation, the separation efficiency of 99.9%.


Dual anti-reverse the elevator Insurance Design: First, the use of ratchet pawl wheel drive head to prevent the reversal of institutions, and second drive motor brake motor using anti-reverse. At the same time has lost in the round turn passive detection and alarm devices.





Other roller through type shot blasting macnine



Parameter

Q698

Q6912

Q6915

Q6920

Q6925

Q6930

Q6940

The effective cleaning width(mm)

800

1200

1500

2000

2500

3000

4000

Dimesion of inlet opening

1600*800

1200*400

1700*400

2200*400

2700*800

3200*800

4200*400

The length of cleaning workpiece(mm)

1200-12000

1200-1600

1200-12000

1200-12000

3000-12000

2400-12000

4500-18000

The speed of conveyer(m/min)

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

The thickness of cleaning steel sheet (mm)

3-60

3-60

1.5-60

3-60

3-60

3-110

4.5-100

Shot ball flow rate (kg/min)

4*120

4*250

4*250

6*250

6*250

6*360

8*360

The shot ball first loading (kg)

4000

4000

4000

4500

4500

8000

11000

Roll brush adjusting height (mm)

200

200

350

450

600

850

900

Air capacity(m3/h)

22000

17560

19000

19550

27758

28050

38000

Total power (kw)

90

78.3

113.5

156.6

204.8

224.55

293.6



We can do all kind of shot blasitng machine according customer's need

Before inquiry we hope you can send us the following information with your inquiry letter, so that we send you the technical drawing and technical proposal at the first time!.

1. The max. Length of the workpiece.
2. The max. Width of the workpiece.
3. The max. Height of the workpiece.
4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
5. The power supply you need( such as 380V, 3P, 50HZ)
6. Better to send us the workpiece photo or drawing.

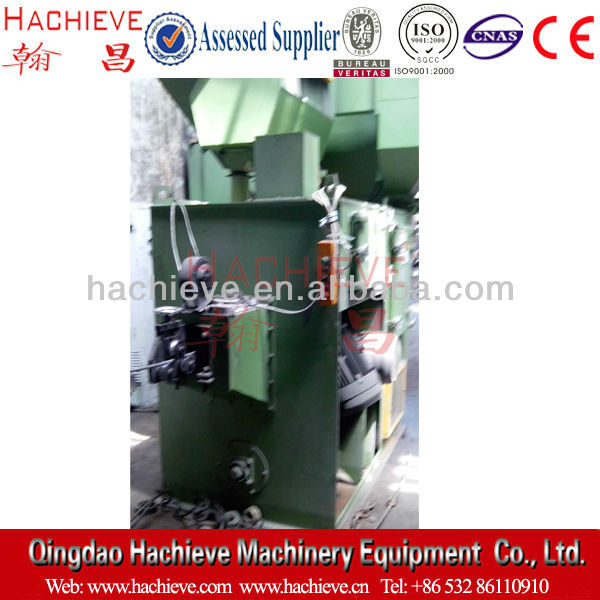

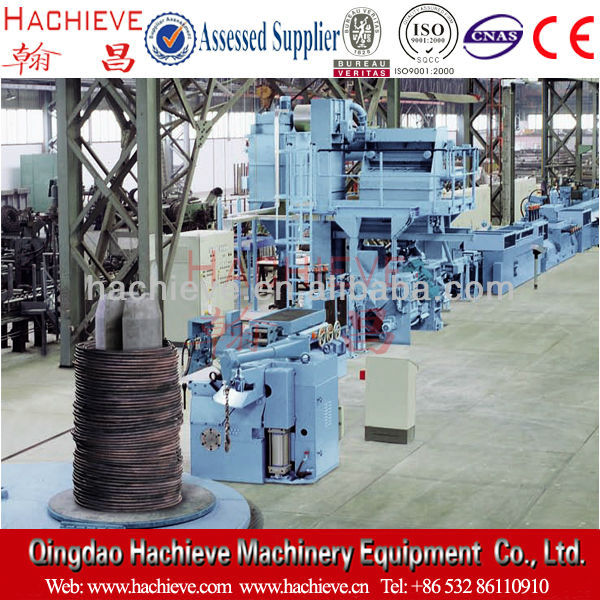

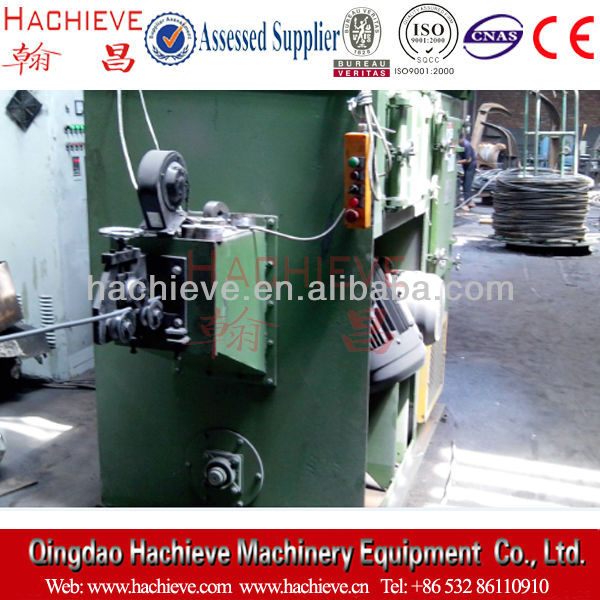

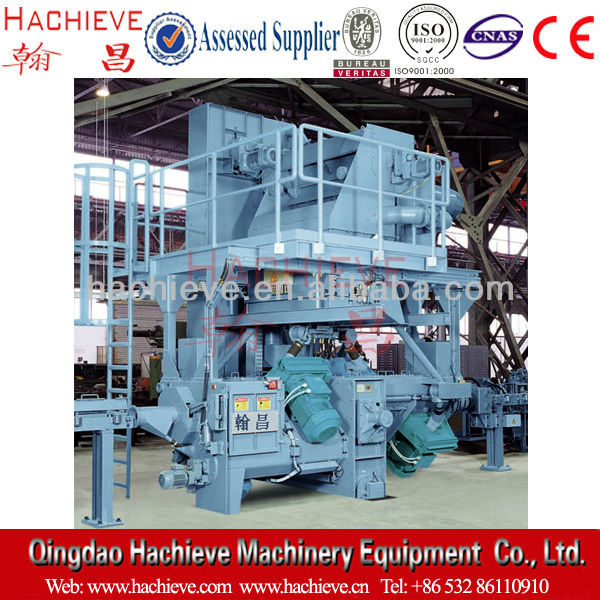

Equipment photo for reference

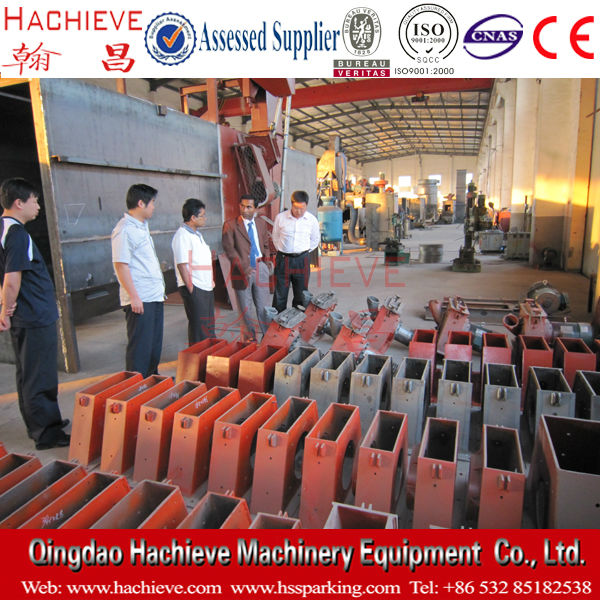

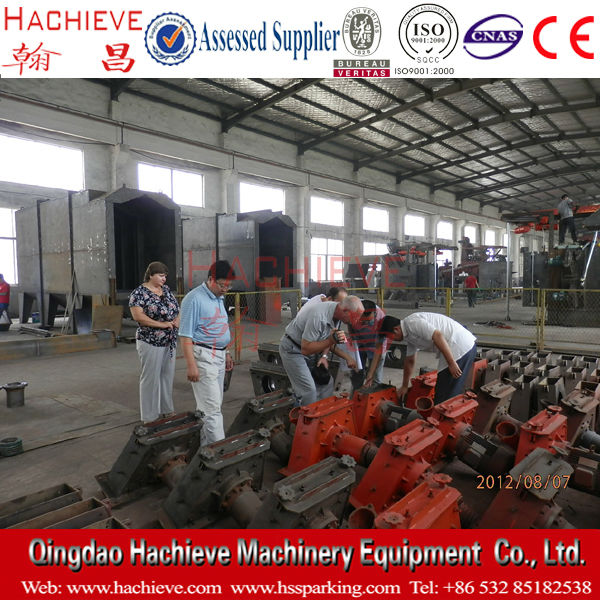

Some of our customer and same model machine







Same model machine



1.QXY2500 Steel plate and profile shot blasting and painting line export to Bangladesh in 2011



2.QXY3500 Steel plate and profile shot blasting and painting line export to Turkey in 2012





3.QLY3500 Vertical Steel plate shot blasting  machine export to Saudi Arabia in 2012
