Quick Details

  • Machine Type: Abrator
  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HACHIHEVE
  • Model Number: Q37
  • Feature: Critical Cleaning / Residue Free, Rust / Corrosion Inhibitor
  • Fuel: Electric
  • Certification: CE, ALI, ISO
  • Use: Burnishing, Descaling / Stripping
  • Cleaning Process: Abrasive, steel shot ball
  • Cleaning Type: High speed shot blasting
  • Industry Used: Casting, automibile, steel
  • Material: Metal / Coil
  • Power(W): 20~200kw
  • Dimension(L*W*H): Customized
  • After-sales Service Provided: Engineers available to service machinery overseas
  • PLC Control: Viable
  • Operate Type: Auto / Manual
  • Single Hook loading: >= 500 kgs
  • Track type: Ring or others
  • Blast wheel Qty: 4-16
  • Blasting speed: 0.5-3m/min
  • Blast wheel motor: 7.5~75KW

Packaging & Delivery

Packaging Details Our factory Seaworthy packing
Delivery Time 45 days

Specifications

1.Hook type shot blasting machine
2.Compact structure
3.Blast 1T to 10T workpiece
4.Surface Descaling,cleaning equipmet
5.CE

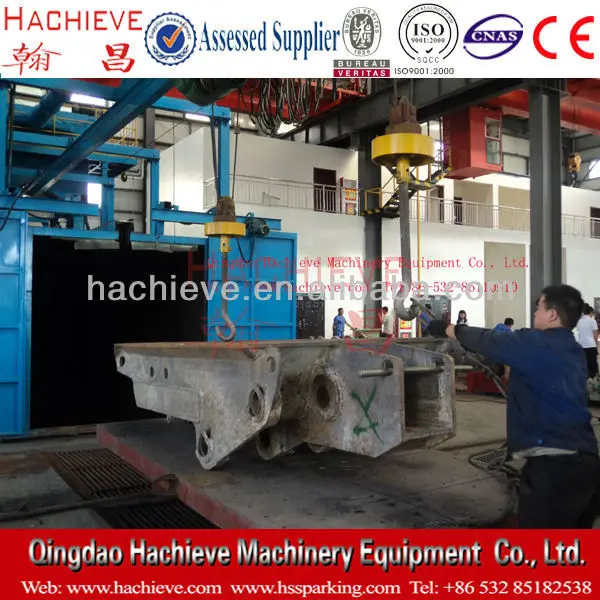

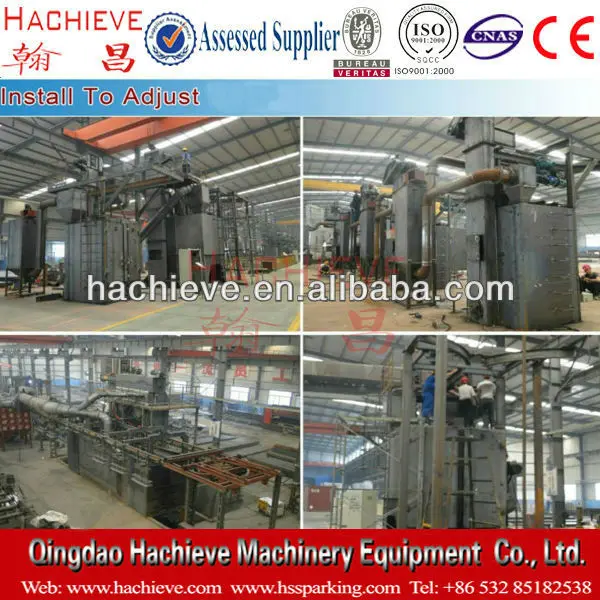

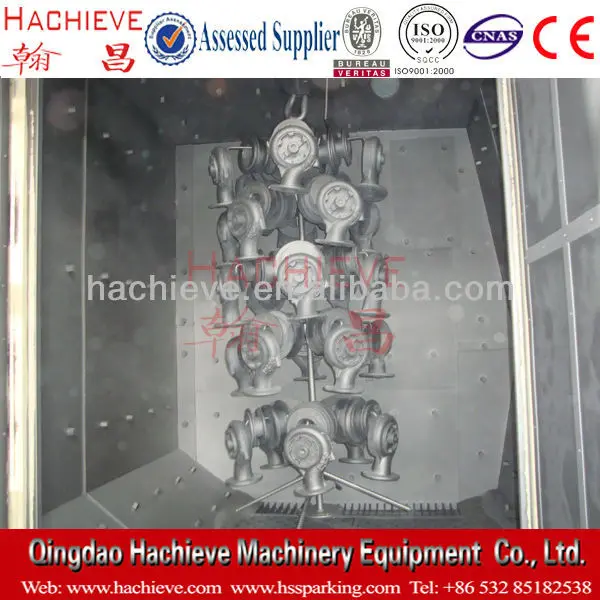

Q376 Hook Shot Blasting Machine / Hook Sand Blasting Machine / Rust Removing Equipment



Features:

  1. This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.
  2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
  3. No special request for the workpiece structure. Can be used for different kinds of workpieces.
  4. Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.
  5. Can be equipped as a part of a processing line.

 Same model technical:

TypeQ376Q376BQ378CQ3710Q3720Q3730Q3750Q37100
Maximum weight of cleaning(kg)500600800100020003000500010000
Maximum overall dimensions of suspender(mm)600X1200700X12001000X16001200X18001400X22001600X23001800X25003000X3000
Abrasive flow rate(kg/min)2X2002X2002X2502X2503X2503X2504X2505X250
Lifting amount of elevating conveyor(T/h)2424303045456075
Separating amount of separator(T/h)2424303045456075
Total power(kw)22.523.539.6547.556.265.4585.4597.65
Ventilation capacity(M ³ /h)40004000500050009000110001400016000



If you are interested in this equipment, please don't hesitate to contact us!



If the machine is not suitable for your workpiece, please tell us the following infromation:



1)     What kind of workpiece will you clean?



2)    The size of workpieces(length, width and height of maximum  workpiece,Length, width and  height of minimum workpiece?)



3)     How many  the weight of maximum and minimum workpiece?



4)     Please tell us your requirement cleaning efficiency?





According to your infomation, the most suitable machines will be designed for your workpieces
