Quick Details

  • Machine Type: Sandblaster
  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HACHIEVE
  • Model Number: HQ69
  • Feature: Critical Cleaning / Residue Free, Non-Ionic, Non-Toxic, Rust / Corrosion Inhibitor, Sudsing / Foaming
  • Fuel: Electric
  • Certification: CE
  • Use: remove rust
  • Cleaning Process: Steel sand
  • Cleaning Type: High speed sand blasting
  • Industry Used: machine building industry
  • Material: Metal / Coil
  • Power(W): Customized
  • Dimension(L*W*H): Customized
  • After-sales Service Provided: Engineers available to service machinery overseas
  • PLC Control:: viable
  • Sweeping Chamber:: viable
  • Pre-heating Chamber:: viable
  • Painting Chamber:: viable
  • Drying Chamber:: viable
  • Power (V):: 110/220/380/400/440V
  • HZ:: 50/60Hz
  • Phase:: 1/2/3 Ph
  • Blast wheel qty:: 6~16
  • Blast wheel power: 7.5~75kw

Packaging & Delivery

Packaging Details export standard
Delivery Time 60 days

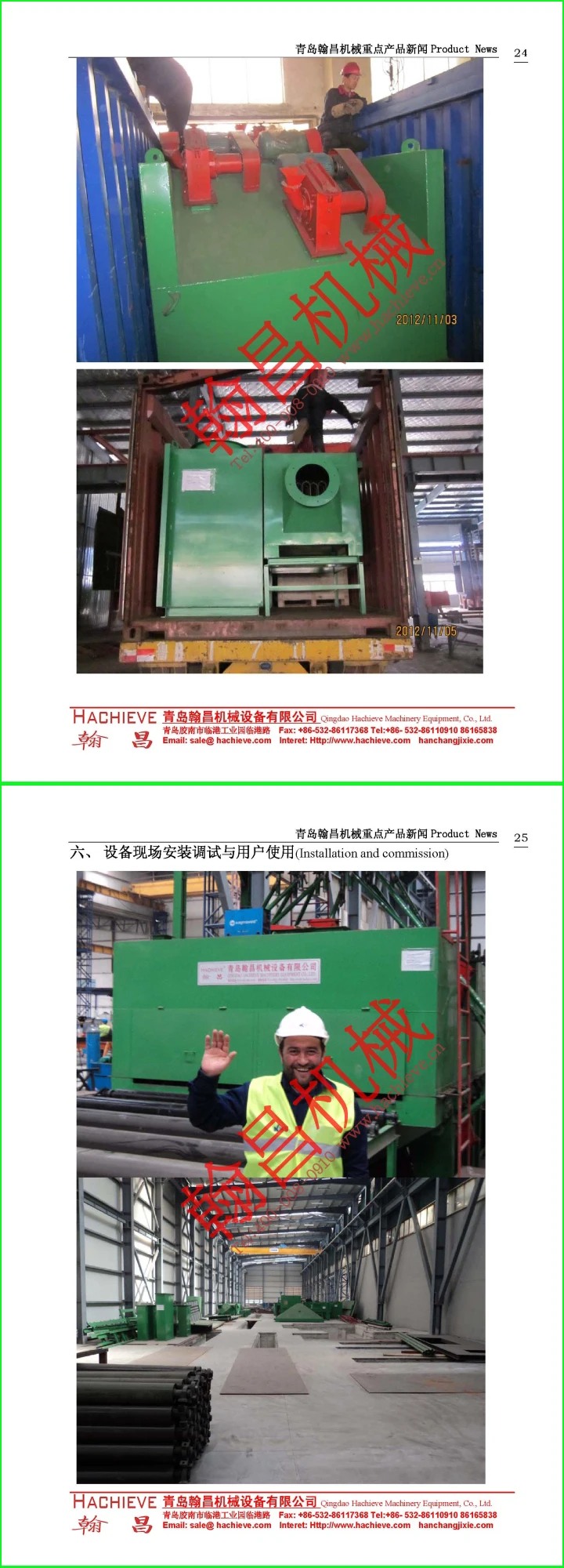

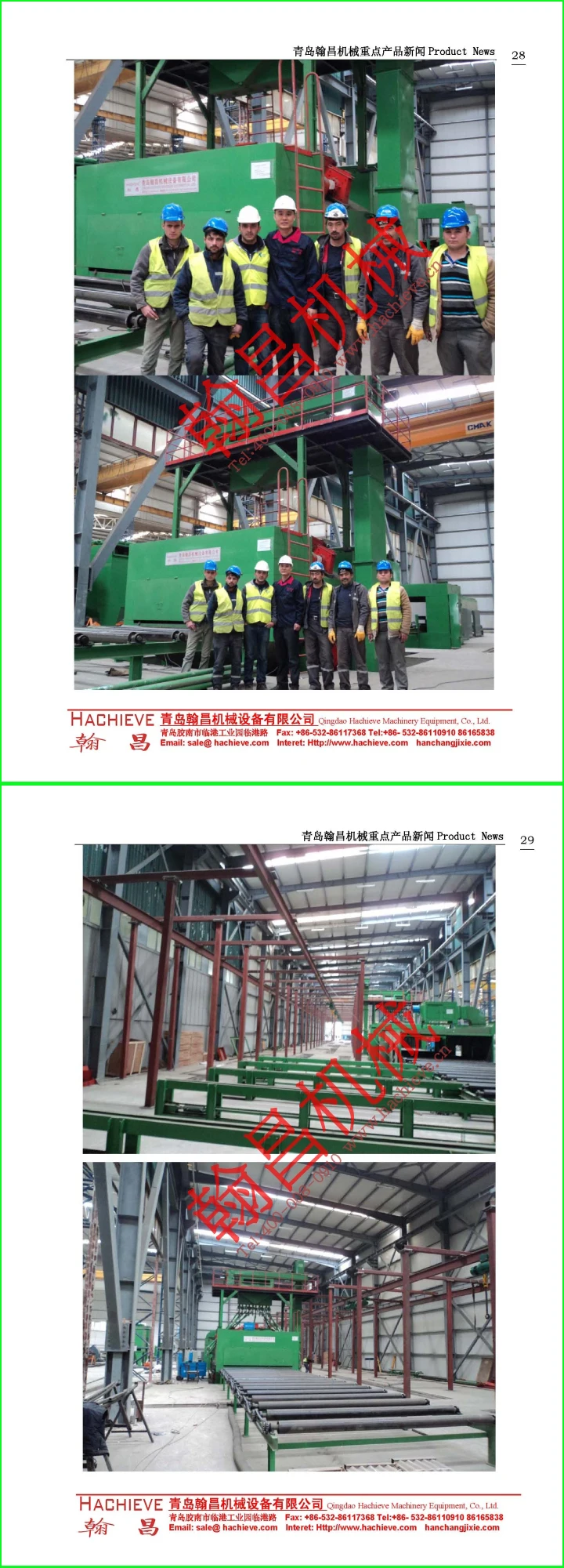

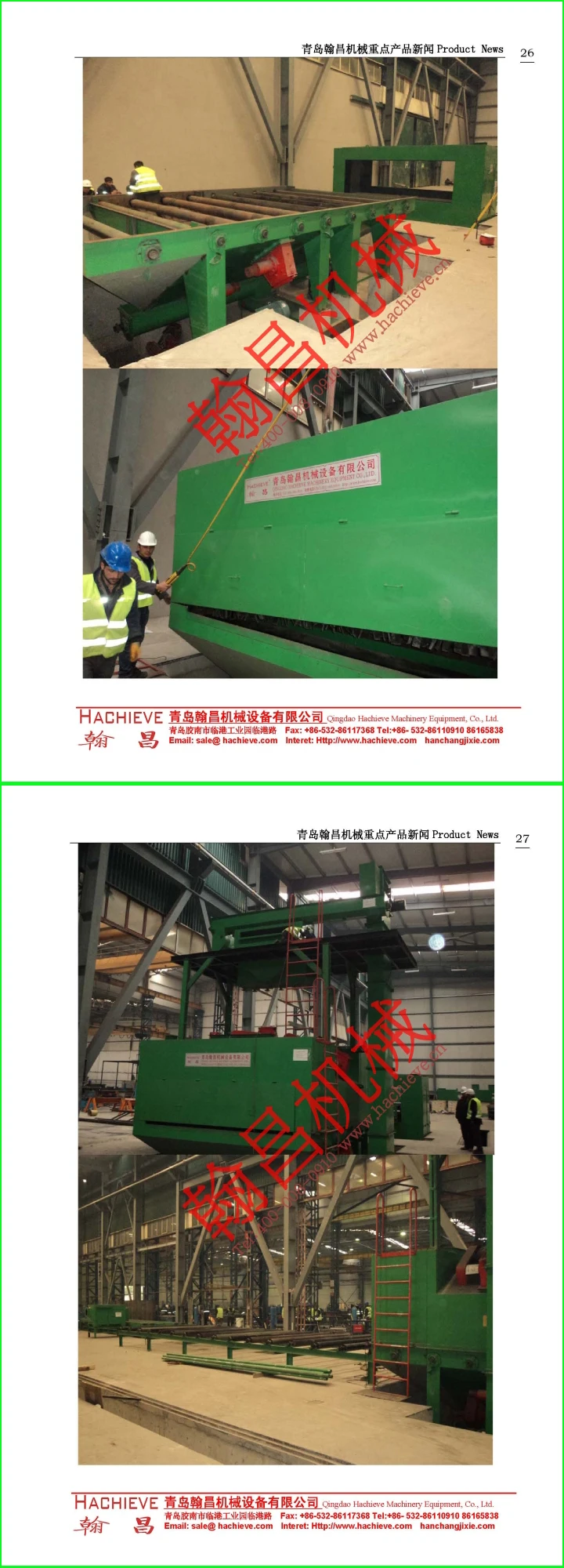

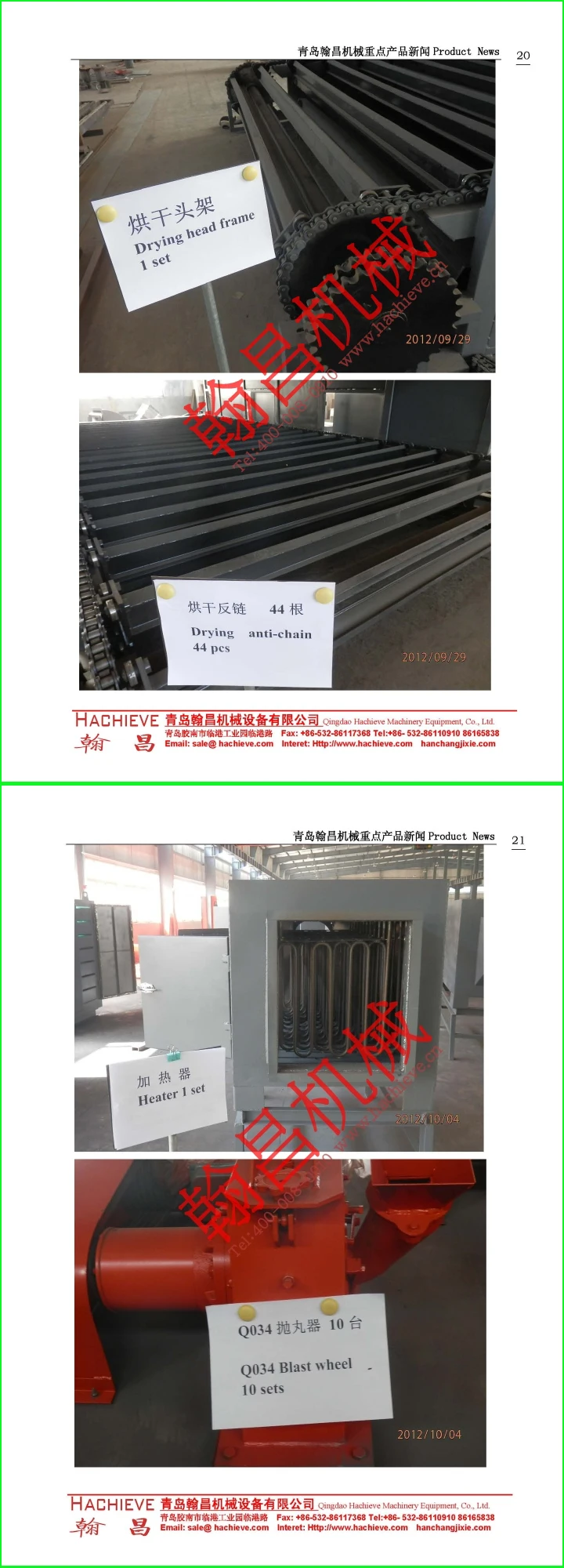

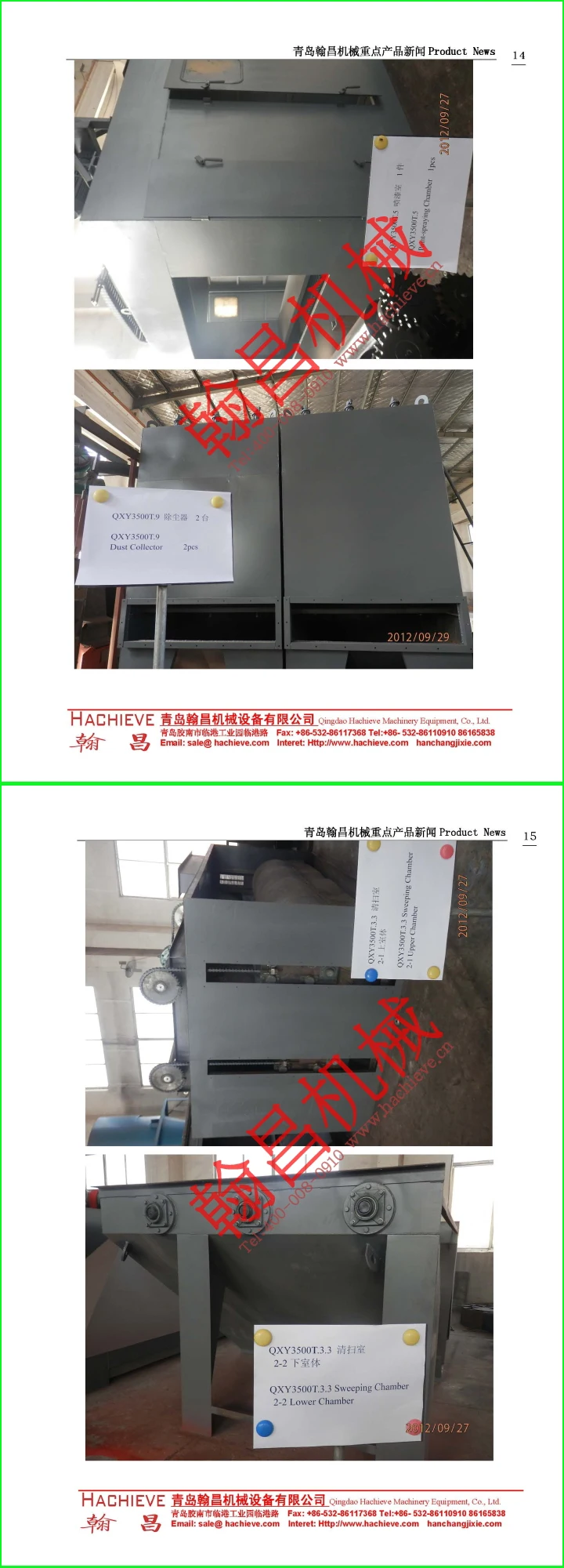

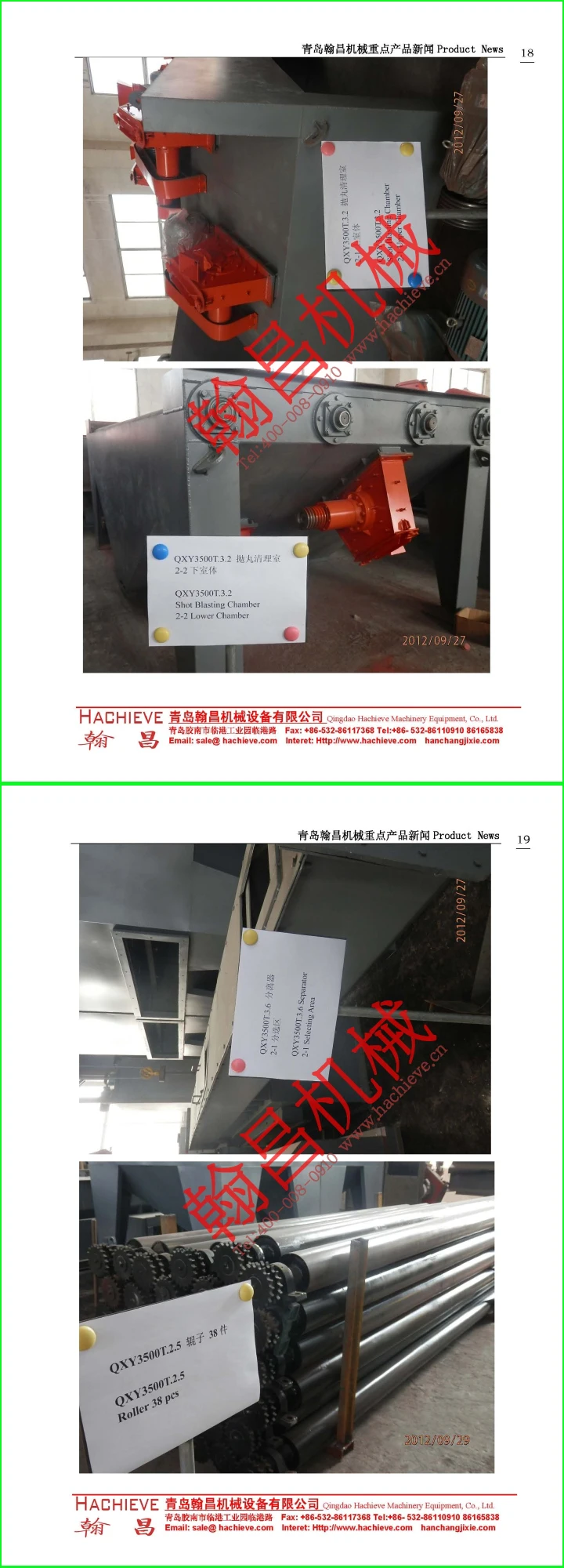

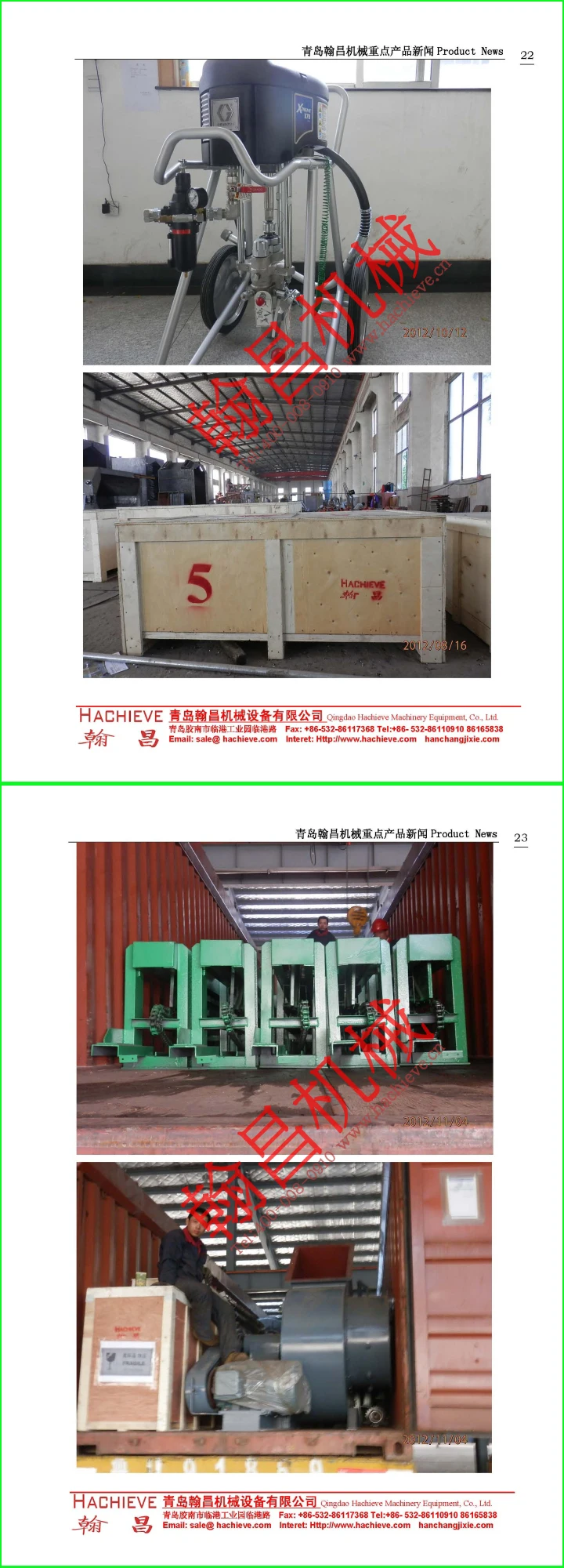

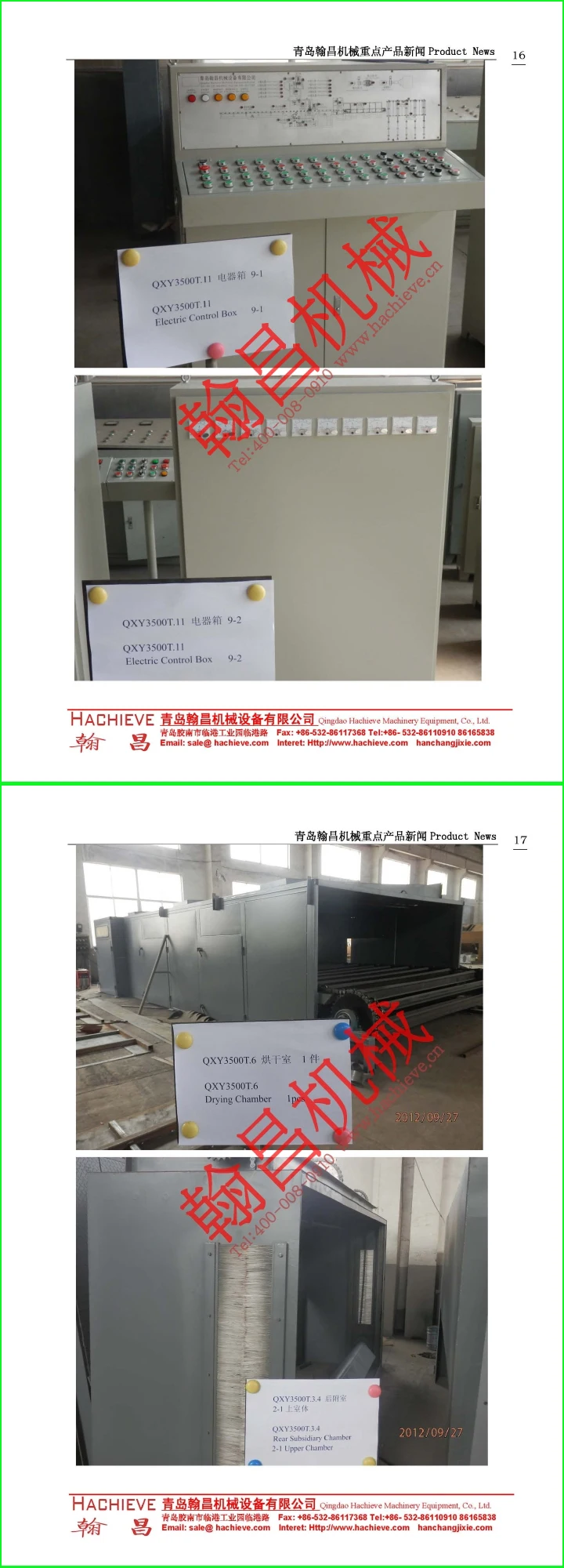

Turkey  QXY3500 Steel plate shot blasting and painting line





Company Information



Qingdao HACHIEVE Machinery Equipment Co., Ltd. has been doing business more than 20 years. We have hundreds of shot blasting machines and component retrofits in operation in China and abroad serving every industry that utilizes blast cleaning technology.


Manufactured to meet your needs. Systems include:

• Structural Steel
          • Overhead Conveyor
          • Roller Conveyor
          • Work Car
• Steel Drum & Lid

• Plate Steel
• Plate Preservation Lines
• Bar & Wire/Coil Steel
• Wind Tower
• Rail Car

• Foundry
          • Table Blast
          • Tumble Blast
          • Spinner Hanger


Put our experience and expertise in the shot blast industry to work for you!



Roller Conveyor Shot Blasting Machine is suitable for Shot Blasting of steel structure like angles, channels, rounds, beams and other items. Shot Blast machine has shown operating benefits that includes increase production without adding man power, elimination of acid pickling, disposal of acid waste. Shot Blasting is faster, cheaper and flexible. Shot Blasted surface if painted properly last much longer. Major application Ship Yard, Agriculture implements, Earth Moving Equipments, wind mills etc.



Product Description



Shot blasting, or abrasive blasting, is an essential part of most steel mill, metal finishing and foundry operations and has been an established finishing technique since the late 1800’s. It is a mechanical method of propelling abrasive using a centrifugal wheel to remove surface contamination, scale and other impurities from the surface of steel applications, like structural steel including massive bridge girders and heavy construction equipment, large weldments, plate steel, bar and wire steel and foundry castings. In general, blasting prior to finishing serves three primary purposes: it cleans and descales surfaces, adds texture to enhance paint adhesion, and if done properly reduces maintenance costs by increasing coating life.

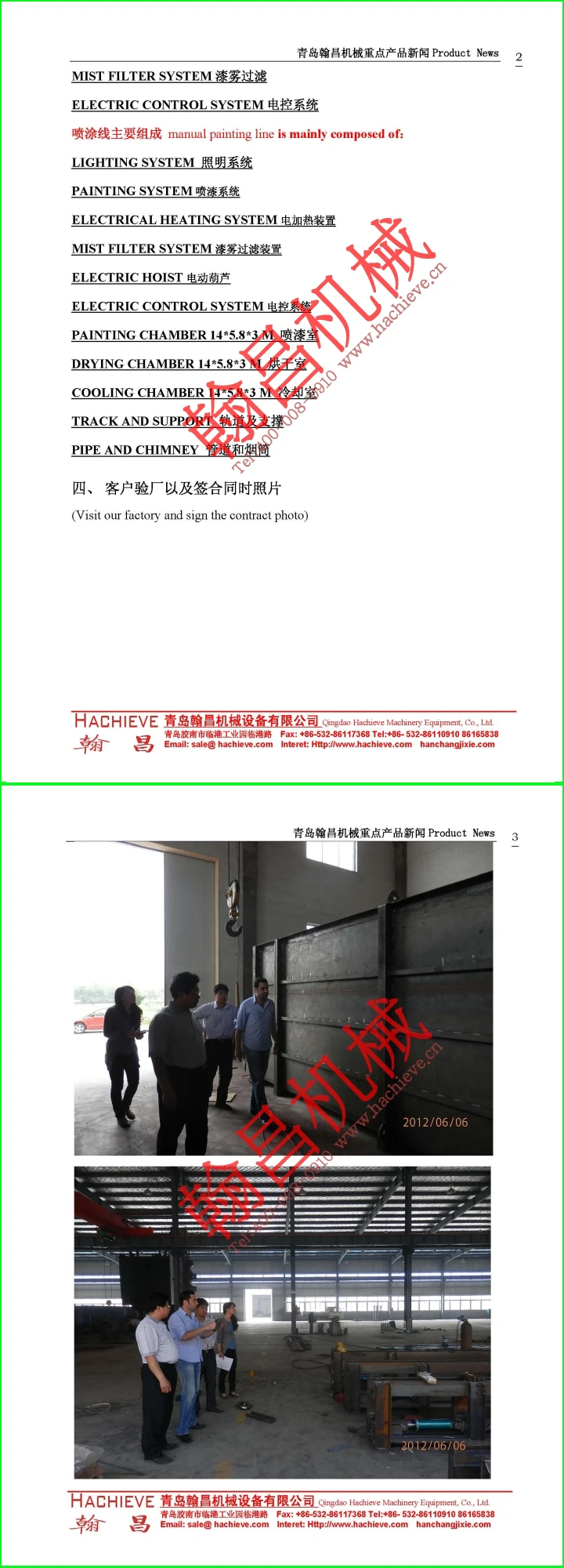

Equipment Main components:



1. Inlet roller

2. Shot blasting chamber

3. Sweeping chamber

4. Abrasive/ shot balls circulation system

5. Shot cycle purifying system

6. Shot dust collecting system

7. Painting chamber

8. Drying chamber

9. Fume filter and harmful gas purifying device

10. Outlet roller

11. Electric control system



1. The same model of different side steel plate shot blasting macnine:



No

Name

Unit

Type1

Type 2

Type 3

1

The width of the workpiece

mm

Under 2500

under 3500

Under 4500 (plate)

2

Model



QXY2000,QXY2200,

QXY2500

QXY3000,QXY3200,

QXY3500

QXY3500,QXY4000,

QXY4500

3

Plate width (Max)

mm

The number after  QXY

The number after

  QXY

The number after

QXY

4

Plate thickness



3~60

3~60

3~100

5

The smallest section of profile

mm*mm

60*80

60*80

------

6

The largest section of  profile

mm*mm

1000*300

1000*300

------

7

The shortest workpiece

mm

2400

2400

2400

8

Maximum workpiece

mm

12000

12000

12000

9

Conveyor speed

m/s

1~5(Note)

0.5~4(Note)

4~6(single)

10

Derusting Quality Level



ISO8501-1,1988

GB8923-88

Sa2.5

11

Surface roughness

μm

40~70

40~70

40~70

12

Paint Film thickness

μm

15~25

15~25

15~25

13

Paint type



Quick-drying-type zinc-rich primer

Quick-drying-type zinc-rich primer

Quick-drying-type zinc-rich primer

14

Installed Power

kw

According to the actual situation

According to the actual situation

According to the actual situation

15

Compressed air consumption

m3/min

5~7

5~7

5~7

16

Compressed air pressure range

MPa

0.4~0.6

0.4~0.6

0.4~0.6

17

The first addition of the shot ball

T

8~10

8~10

12~16





2. Other roller through type shot blasting macnine:

Parameter

Q698

Q6912

Q6915

Q6920

Q6925

Q6930

Q6940

The effective cleaning width(mm)

800

1200

1500

2000

2500

3000

4000

Dimesion of inlet opening

1600*800

1200*400

1700*400

2200*400

2700*800

3200*800

4200*400

The length of cleaning workpiece(mm)

1200-12000

1200-1600

1200-12000

1200-12000

3000-12000

2400-12000

4500-18000

The speed of conveyer(m/min)

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

The thickness of cleaning steel sheet (mm)

3-60

3-60

1.5-60

3-60

3-60

3-110

4.5-100

Shot ball flow rate (kg/min)

4*120

4*250

4*250

6*250

6*250

6*360

8*360

The shot ball first loading (kg)

4000

4000

4000

4500

4500

8000

11000

Roll brush adjusting height (mm)

200

200

350

450

600

850

900

Air capacity(m3/h)

22000

17560

19000

19550

27758

28050

38000

Total power (kw)

90

78.3

113.5

156.6

204.8

224.55

293.6





FAQ



 We can do all kind of shot blasitng machine according customer's need.



1. The max. Length of the workpiece.
2. The max. Width of the workpiece.
3. The max. Height of the workpiece.
4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
5. The power supply you need( such as 380V, 3P, 50HZ)
6. Better to send us the workpiece photo or drawing.
