Quick Details

  • Grade: 600 Series
  • Standard: ASTM, AISI, DIN, EN, GB, JIS
  • Length: CUSTOMIZED
  • Thickness: 3-50MM OR CUSTOMIZED
  • Width: CUSTOMIZED
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HACHIEVE
  • Model Number: QH69
  • Type: Coil
  • Application: Stainless Steel Strips shot blasting machine
  • Certification: BV
  • Electrical contron system: SIEMENS/OMRON PLC
  • Workpiece width: 1-5m, Or Customized
  • Workpiece length: 1-12m,Or Customized
  • Workpiece height: 3-50mm, Or Customized
  • Painting chamber: Customized
  • Drying chamber: Customized
  • Voltage: 220/380/440V Or Customized
  • Blast wheel Qty.: 2 ~ 16 Or Customized
  • Blast wheel Power: 7.5 ~ 75Kw
  • Shot blasting speed: 0.5~80m/min Or Customized

Packaging & Delivery

Packaging Details: Seaworthy standard.
Delivery Detail: 30 days

Stainless Steel Strips  shot blasting machine



Company Information



QINGDAO HACHIEVE Machinery Equipment Co., Ltd. has been doing business more than 20 years. We have hundreds of shot blasting machines and component retrofits in operation in China and abroad serving every industry that utilizes blast cleaning technology.


Manufactured to meet your needs. Systems include:

• Structural Steel
          • Overhead Conveyor
          • Roller Conveyor
          • Work Car
• Steel Drum & Lid

• Plate Steel
• Plate Preservation Lines
• Bar & Wire/Coil Steel
• Wind Tower
• Rail Car

• Foundry
          • Table Blast
          • Tumble Blast
          • Spinner Hanger


Put our experience and expertise in the shot blast industry to work for you!



Strip steel and stainless steel shot blasting machine is suitable for Shot Blasting of Strip steel and stainless steel.  Shot blasting and painting machine has shown operating benefits that includes increase production without adding man power, elimination of acid pickling, disposal of acid waste. Shot Blasting is faster, cheaper and flexible. Shot Blasted surface if painted properly last much longer. Major application Ship Yard, Agriculture implements, Earth Moving Equipments, wind mills etc.



Product Description



Sand blaster, Shot blasting, or abrasive blasting, is an essential part of most steel mill, metal finishing and foundry operations and has been an established finishing technique since the late 18’s. It is a mechanical method of propelling abrasive using a centrifugal wheel to remove surface contamination, scale and other impurities from the surface of steel applications, like structural steel including massive bridge girders and heavy construction equipment, large weldments, plate steel, bar and wire steel and foundry castings. In general, blasting prior to finishing serves three primary purposes: it cleans and descales surfaces, adds texture to enhance paint adhesion, and if done properly reduces maintenance costs by increasing coating life.



1. Strip steel and stainless steel shot blasting machine:

Type

HC-4/600

HC-4/1600

HC-4/2100

Max Width (mm)

600

600-1600

800-2100

Blast wheel Qty

4

4

4

Each blast wheel Power (Kw)

45

90

90

Abrasive flowing rate (Kg/min)

600

1200

1200480

Total Power (Kw)

230

480



Shot blasting speed (m/min)

20

20

15



Note: the shot blasting chamber quantity can be extended, can according to the specific requirements of steel processing, to provide the corresponding parameters.



2. Other moedl steel plate shot blasting machine:



No

Name

Unit

Type1

Type 2

Type 3

1

The width of the workpiece

mm

Under 2500

under 3500

Under 4500 (plate)

2

Model



QXY2000,QXY2200,

QXY2500

QXY3000,QXY3200,

QXY3500

QXY3500,QXY4000,

QXY4500

3

Plate width (Max)

mm

The number after  QXY

The number after

  QXY

The number after

QXY

4

Plate thickness



3~60

3~60

3~100

5

The smallest section of profile

mm*mm

60*80

60*80

------

6

The largest section of  profile

mm*mm

1000*300

1000*300

------

7

The shortest workpiece

mm

2400

2400

2400

8

Maximum workpiece

mm

12000

12000

12000

9

Conveyor speed

m/s

1~5(Note)

0.5~4(Note)

4~6(single)

10

Derusting Quality Level



ISO8501-1,1988

GB8923-88

Sa2.5

11

Surface roughness

μm

40~70

40~70

40~70

12

Paint Film thickness

μm

15~25

15~25

15~25

13

Paint type



Quick-drying-type zinc-rich primer

Quick-drying-type zinc-rich primer

Quick-drying-type zinc-rich primer

14

Installed Power

kw

According to the actual situation

According to the actual situation

According to the actual situation

15

Compressed air consumption

m3/min

5~7

5~7

5~7

16

Compressed air pressure range

MPa

0.4~0.6

0.4~0.6

0.4~0.6

17

The first addition of the shot ball

T

8~10

8~10

12~16



3. Other roller through type shot blasting machine:

Parameter

Q698

Q6912

Q6915

Q6920

Q6925

Q6930

Q6940

The effective cleaning width(mm)

800

1200

1500

2000

2500

3000

4000

Dimesion of inlet opening

1600*800

1200*400

1700*400

2200*400

2700*800

3200*800

4200*400

The length of cleaning workpiece(mm)

1200-12000

1200-1600

1200-12000

1200-12000

3000-12000

2400-12000

4500-18000

The speed of conveyer(m/min)

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

The thickness of cleaning steel sheet (mm)

3-60

3-60

1.5-60

3-60

3-60

3-110

4.5-100

Shot ball flow rate (kg/min)

4*120

4*250

4*250

6*250

6*250

6*360

8*360

The shot ball first loading (kg)

4000

4000

4000

4500

4500

8000

11000

Roll brush adjusting height (mm)

200

200

350

450

600

850

900

Air capacity(m3/h)

22000

17560

19000

19550

27758

28050

38000

Total power (kw)

90

78.3

113.5

156.6

204.8

224.55

293.6



FAQ



 We can do all kind of sandblaster according customer's need.

Before inquiry we hope you can send us the following information with your inquiry letter, so that we send you the technical drawing and technical proposal at the first time!.

1. The max. Length of the workpiece?
2. The max. Width of the workpiece?
3. The max. Height of the workpiece?
4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?) ?
5. The power supply you need ( such as 380V, 3P, 50HZ)?
6. Better to send us the workpiece photo or drawing.

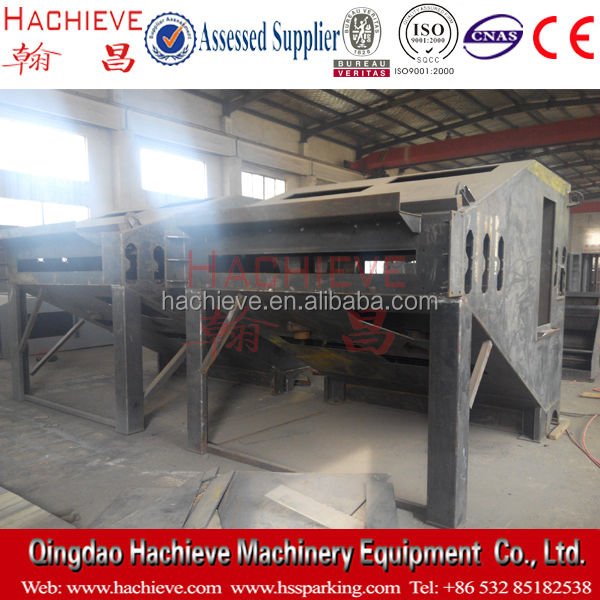

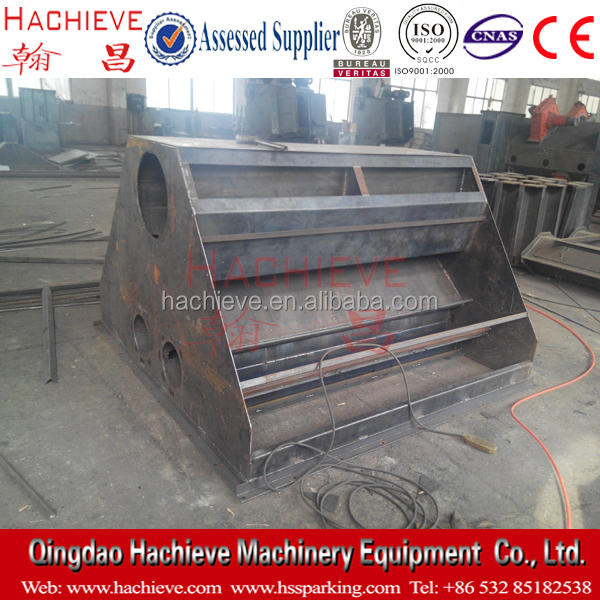

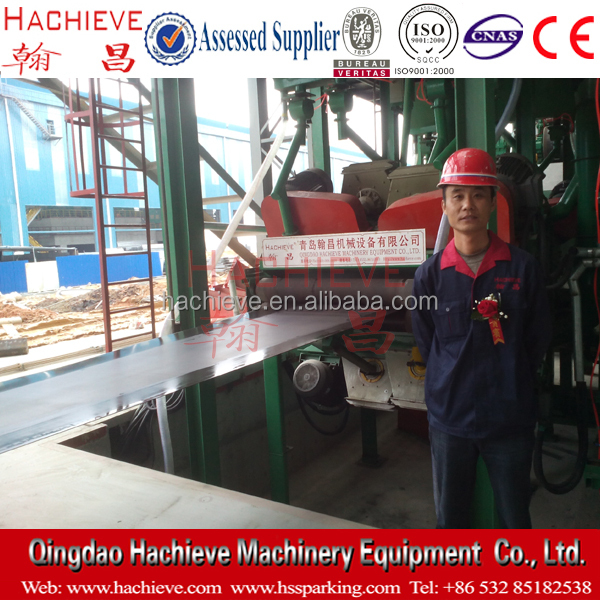

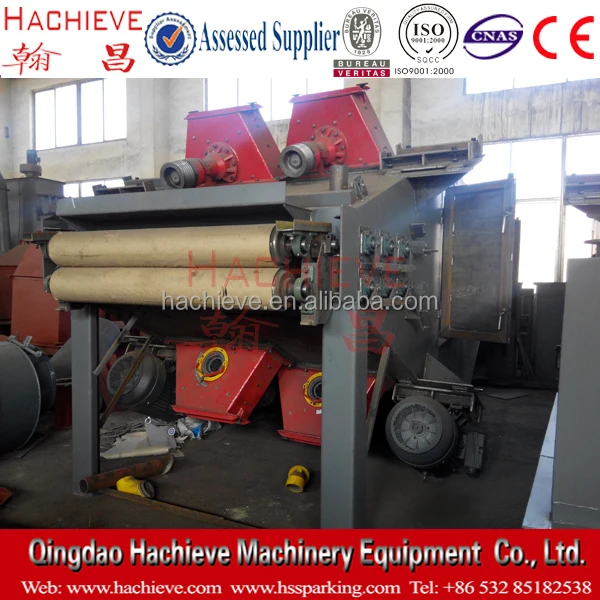

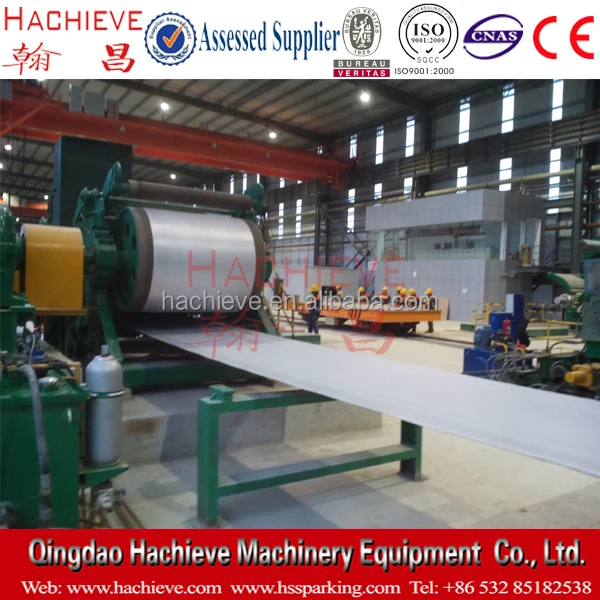

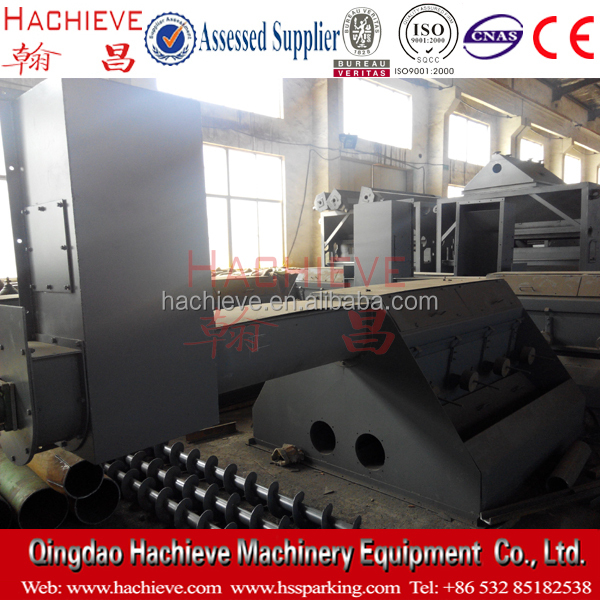

Equipment photo for reference:












Production Flow





Ali Certificate



Our customer:

There are so many customers, I can't list it now……



Our Services



1 The warranty period is 12 months

2 After-sales service

1). Quality of products for one year to implement the "three guarantees." In the "Three Guarantees" period, that where a normal use of malfunction and damage (excluding wearing parts), the company is responsible for free repair or replacement.

2). In the warranty period, if quality problems arise, after receiving user notification within 24 hours:         Without 24 hours by phone or fax to give a reply.

3). After warranty period, to provide quality services to users. We have enough easy-worn spare parts, ensure the quality and delivery time.

3 Guarantees

The company enforces “Brand” strategy; realize “Total Quality Control (TQC)” and ISO9001 International quality system certification.

1. The products are designed by experienced engineers; the design DRAWINGS are checked by experts, to guarantee the design quality;

2. The product will never be sub-contracted to the third-party;

3. As to the elements and parts of the products:
     Such raw materials as steel plates and section steels are all purchased from brand factories;
     Auxiliary elements, standard elements (such as rolling bearings, electric motors and reducers) are all purchased from brand companies, or designated by users.
     The other elements (including plate weldment and machining elements, etc.), are all finished inside our company, to control the machining quality.
     The electric elements adopts domestic quality (or imported, according to the user’s requirement) product, the    PLC adopts international brand products (OMRON, MITSUBISH, SIEMENS, etc.), to guarantee the automation level.

4. A quality supervision team that consists of design engineers and quality inspectors is established, to guarantee the manufacturing quality.

5. Key parts (such as blast wheels), all experience long-time loading trial run within the factory.

6. As for large-scale non-standard equipment, after finishing manufacturing, the user will carry out the pre-acceptance to every functional part, only after the equipment is regarded as quality product, can it be allowed to leave the factory.

7. The company guarantee the spare-part supply for our products (For detailed information, please refer to “Spare-part and special tools”).
