Quick Details

  • Machine Type: Sandblaster
  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HACHIEVE
  • Model Number: QXY
  • Feature: Critical Cleaning / Residue Free, Non-Ionic, Non-Toxic, Sudsing / Foaming
  • Fuel: Electric
  • Certification: CB, CE
  • Use: remove rust
  • Cleaning Process: Abrasive, steel shot ball
  • Cleaning Type: High speed shot blasting cleaning
  • Industry Used: Shipyard, steel mill, Metal manufacturing industry
  • Material: Metal / Coil
  • Power(W): Customized
  • Dimension(L*W*H): Customized
  • After-sales Service Provided: Engineers available to service machinery overseas
  • PLC Control:: Yes
  • Sweeping Chamber:: Had
  • Pre-heating Chamber:: Customized
  • Painting Chamber:: Customized
  • Drying Chamber:: Customized
  • Power (V):: 220/380/400/440V
  • HZ:: 50/60Hz
  • Phase:: 1/2/3 Ph
  • Blast wheel qty:: 6~16
  • Blast wheel power: 7.5~75kw

Packaging & Delivery

Packaging Details STANDARD PACKAGE
Delivery Time 45 WORKING DAYS

Steel plates shot blasting machine /shot blaster/sand blast machine/wheelabrator

1 Steel plate cleaning equipment

2 Plate Width 1-5m, Length 6-12m, Thicknes 5-80mm
3 Blasting speed1~2.5m/min
4 Sa2.5 / Sa3
5 ISO9001-2000 ,CE

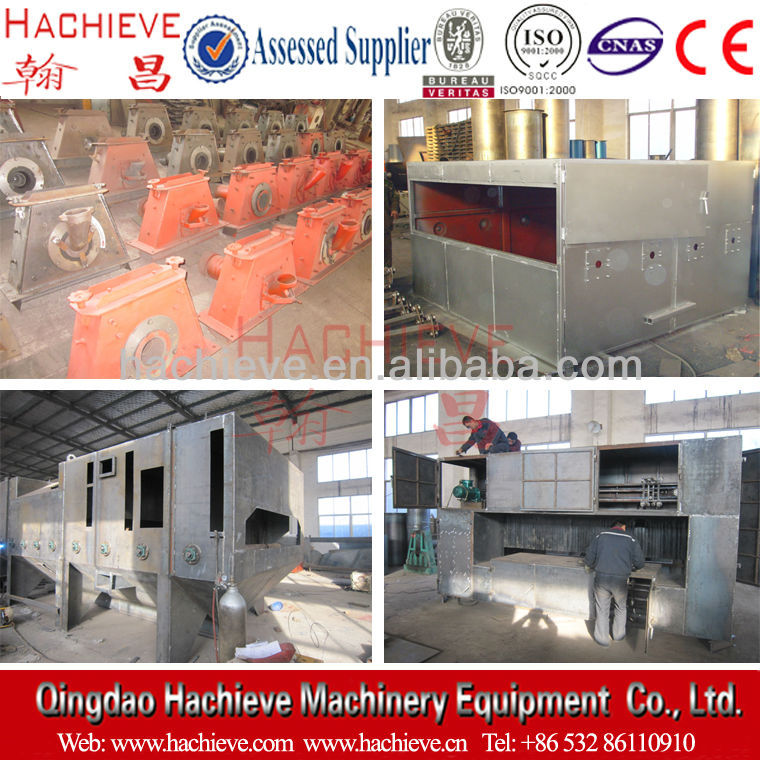

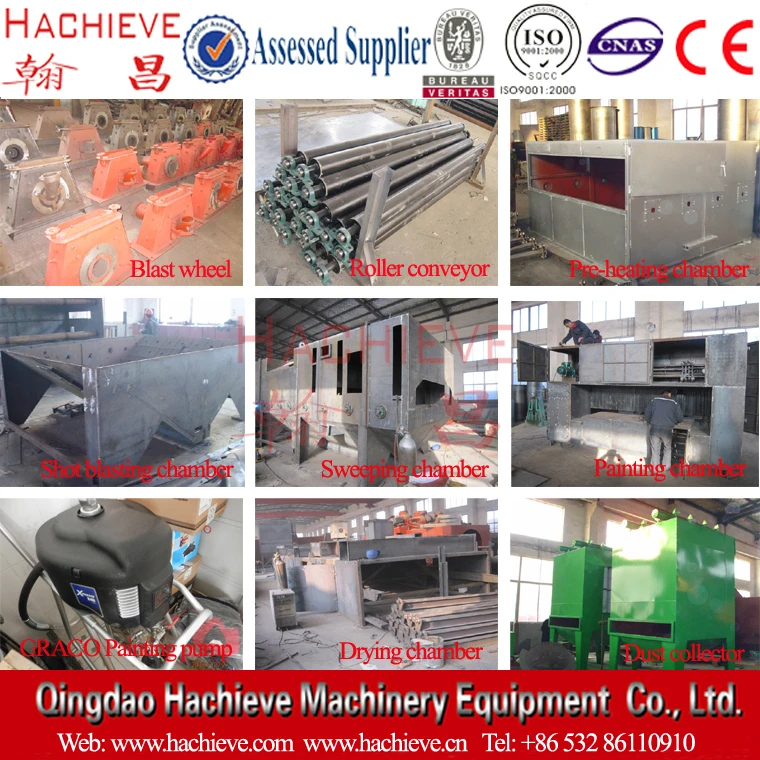

Equipment  Main components:



1. Inlet roller

2. Pre-heating chamber

3. Shot blasting chamber

4. Sweeping chamber

5. Abrasive/ shot balls circulation system

6. Shot cycle purifying system

7. Shot dust collecting system

8. Painting chamber

9. Drying chamber

10.Fume filter and harmful gas purifying device

11.Outlet roller

12.Electric control system



The same model of different size steel plate shot blasting macnine:

No

Name

Unit

Type1

Type 2

Type 3

1

The width of theworkpiece

mm

Under 2500

under3500

Under 4500(plate)

2

Model

QXY2000,QXY2200,

QXY2500

QXY3000,QXY3200,

QXY3500

QXY3500,QXY4000,

QXY4500

3

Plate width (Max)

mm

The number after  QXY

The number after  QXY

The number after  QXY

4

Plate thickness

3~60

3~60

3~100

5

The smallest section of profile

mm*mm

60*80

60*80

------

6

The largest section of  profile

mm*mm

1000*300

1000*300

------

7

The shortestworkpiece

mm

2400

2400

2400

8

Maximumworkpiece

mm

12000

12000

12000

9

Conveyor speed

m/s

1~5(Note)

0.5~4(Note)

4~6(single)

10

DerustingQuality Level

ISO8501-1,1988

GB8923-88

Sa2.5

11

Surface roughness

μm

40~70

40~70

40~70

12

Paint Film thickness

μm

15~25

15~25

15~25

13

Paint type

Quick-drying-type zinc-rich primer

Quick-drying-type zinc-rich primer

Quick-drying-type zinc-rich primer

14

Installed Power

kw

According to the actual situation

According to the actual situation

According to the actual situation

15

Compressed air consumption

m3/min

5~7

5~7

5~7

16

Compressed air pressure range

MPa

0.4~0.6

0.4~0.6

0.4~0.6

17

The first addition of the shot ball

T

8~10

8~10

12~16





Other roller through type shot blasting macnine:

Parameter

Q698

Q6912

Q6915

Q6920

Q6925

Q6930

Q6940

The effective cleaning width(mm)

800

1200

1500

2000

2500

3000

4000

Dimesion of inlet opening

1600*800

1200*400

1700*400

2200*400

2700*800

3200*800

4200*400

The length of cleaning workpiece(mm)

1200-12000

1200-1600

1200-12000

1200-12000

3000-12000

2400-12000

4500-18000

The speed of conveyer(m/min)

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

The thickness of cleaning steel sheet (mm)

3-60

3-60

1.5-60

3-60

3-60

3-110

4.5-100

Shot ball flow rate (kg/min)

4*120

4*250

4*250

6*250

6*250

6*360

8*360

The shot ball first loading (kg)

4000

4000

4000

4500

4500

8000

11000

Roll brush adjusting height (mm)

200

200

350

450

600

850

900

Air capacity(m3/h)

22000

17560

19000

19550

27758

28050

38000

Total power (kw)

90

78.3

113.5

156.6

204.8

224.55

293.6



We can do all kind of shot blasitng machine according customer's need !


Before inquiry we hope you can send us the following information with your inquiry letter, so that we send you the technical drawing and technical proposal at the first time!.

1. The max. Length of the workpiece.
2. The max. Width of the workpiece.
3. The max. Height of the workpiece.
4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
5. The power supply you need( such as 380V, 3P, 50HZ)
6. Better to send us the workpiece photo or drawing.

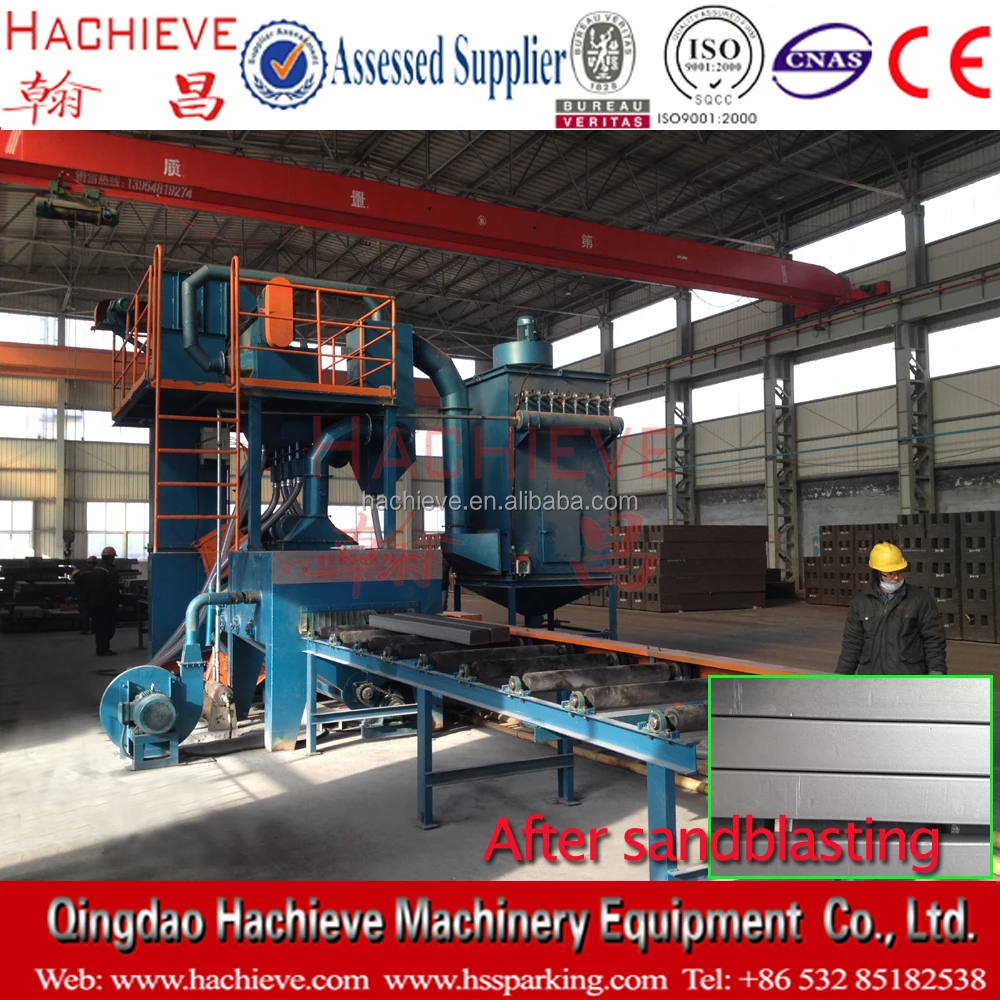

Equipment photo for reference






Same model machine



1.QXY2500 Steel plate and profile shot blasting and painting line export to Bangladesh in 2011



2.QXY3500 Steel plate and profile shot blasting and painting line export to Turkey in 2012







3.QLY3500 Vertical Steel plate shot blasting  machine export to Saudi Arabia in 2012



Production Flow



Our Customer



Loading



Ali Certificate



ISO CERTIFICATE

Business card





My contacts as following:

Office phone:0086-532-85182538

My cellphone :0086-13869854840

WhatsApp: 13869854840

Viber:13869854840

Wechat:Langtian889

Skype: peter_wxp
