Quick Details

  • Machine Type: Abrator
  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HACHIEVE
  • Model Number: QXY
  • Feature: Rust / Corrosion Inhibitor
  • Fuel: Electric
  • Certification: CE
  • Use: Descaling / Stripping
  • Cleaning Process: Abrasive, steel shot ball
  • Cleaning Type: Clean-In-Place (CIP)
  • Industry Used: Shipyard, steel plant
  • Material: Metal / Coil
  • Power(W): 50~380kw
  • Dimension(L*W*H): Customized
  • After-sales Service Provided: Engineers available to service machinery overseas
  • PLC Control:: viable
  • Sweeping Chamber:: viable
  • Pre-heating Chamber:: viable
  • Painting Chamber:: viable
  • Drying Chamber:: viable
  • Power (V):: 220/380/400/440V
  • HZ:: 50/60Hz
  • Phase:: 1/2/3 Ph
  • Blast wheel qty:: 6~16
  • Blast wheel power: 7.5~75kw

Packaging & Delivery

Packaging Details: export standard
Delivery Detail: 40 days

Specifications

1 Steel plate shot blasting machine
2 Plate W 1-5m,L 6-12m,T 3-80mm
3 Blasting speed1~2.5m/min
4 Sa2.5 / Sa3
5 ISO9001,CE

QXY3500  Steel Plate Shot Blasting Machine / Steel Plate Sand Blasting Machine / Steel Plate Shot Blasting And Painting Machine



1 Steel plate shot blasting machine

2 Plate Width 1-5m,Length 6-12m,Thicknes 5-80mm
3 Blasting speed1~2.5m/min
4 Sa2.5 / Sa3
5 ISO9001-2000 ,CE



Equipment  Main components:



1. Inlet roller

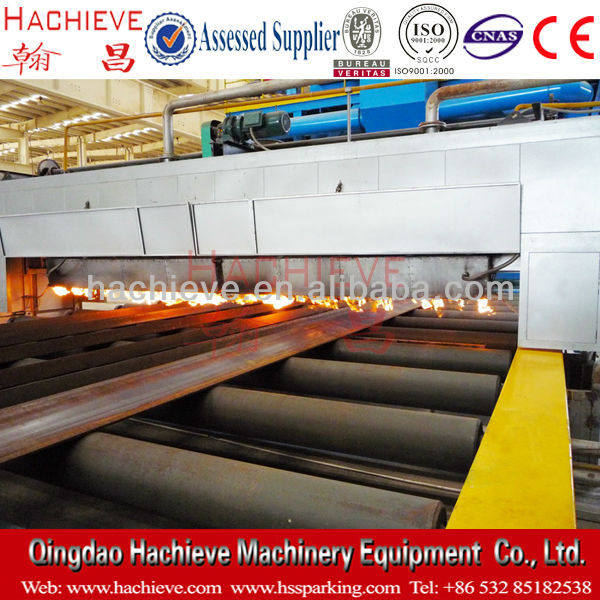

2. Pre-heating chamber

3. Shot blasting chamber

4. Sweeping chamber

5. Abrasive/ shot balls circulation system

6. Shot cycle purifying system

7. Shot dust collecting system

8. Painting chamber

9. Drying chamber

10.Fume filter and harmful gas purifying device

11.Outlet roller

12.Electric control system



 The same model of different side steel plate shot blasting macnine





Other roller through type shot blasting macnine



Parameter

Q698

Q6912

Q6915

Q6920

Q6925

Q6930

Q6940

The effective cleaning width(mm)

800

1200

1500

2000

2500

3000

4000

Dimesion of inlet opening

1600*800

1200*400

1700*400

2200*400

2700*800

3200*800

4200*400

The length of cleaning workpiece(mm)

1200-12000

1200-1600

1200-12000

1200-12000

3000-12000

2400-12000

4500-18000

The speed of conveyer(m/min)

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

The thickness of cleaning steel sheet (mm)

3-60

3-60

1.5-60

3-60

3-60

3-110

4.5-100

Shot ball flow rate (kg/min)

4*120

4*250

4*250

6*250

6*250

6*360

8*360

The shot ball first loading (kg)

4000

4000

4000

4500

4500

8000

11000

Roll brush adjusting height (mm)

200

200

350

450

600

850

900

Air capacity(m3/h)

22000

17560

19000

19550

27758

28050

38000

Total power (kw)

90

78.3

113.5

156.6

204.8

224.55

293.6



We can do all kind of shot blasitng machine according customer's need


Before inquiry we hope you can send us the following information with your inquiry letter, so that we send you the technical drawing and technical proposal at the first time!.

1. The max. Length of the workpiece.
2. The max. Width of the workpiece.
3. The max. Height of the workpiece.
4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
5. The power supply you need( such as 380V, 3P, 50HZ)
6. Better to send us the workpiece photo or drawing.

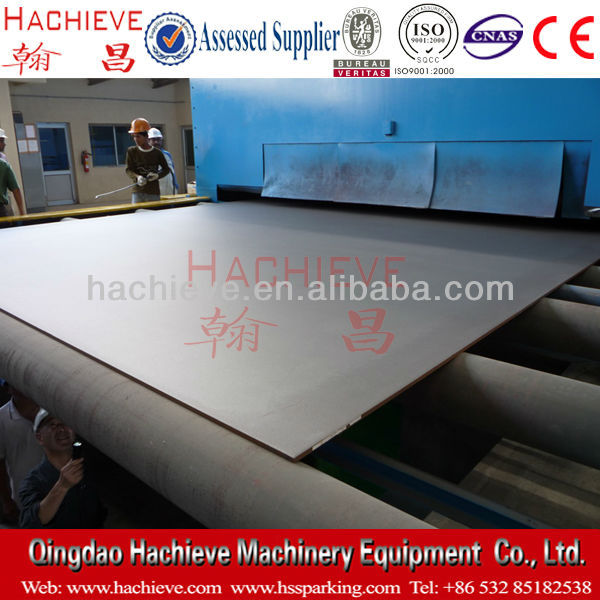

Equipment photo for reference

Some of our customer and same model machine







Same model machine



1.QXY2500 Steel plate and profile shot blasting and painting line export to Bangladesh in 2011



2.QXY3500 Steel plate and profile shot blasting and painting line export to Turkey in 2012







3.QLY3500 Vertical Steel plate shot blasting  machine export to Saudi Arabia in 2012
