Quick Details

  • Machine Type: Abrator
  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HACHIEVE
  • Model Number: Q765
  • Feature: Critical Cleaning / Residue Free, Rust / Corrosion Inhibitor
  • Fuel: Electric
  • Certification: CE, ISO, ALI
  • Use: Burnishing, Descaling / Stripping
  • Cleaning Process: Abrasive / steel shot ball
  • Cleaning Type: High speed blasting
  • Industry Used: Casting, automobile, foundry
  • Material: Metal / Coil
  • Power(W): 35.8
  • Dimension(L*W*H): 9000*5200*9090
  • After-sales Service Provided: Overseas third-party support available
  • blasting chamber: replaceable Mn65 steel liner
  • impeller head: high chromium wear resistant casting
  • low-voltage apparatus: world famous brand Scheider
  • dust collector: both cartridge filters and bag filters available
  • PLC Control: viable
  • Power (V): 220/380/400/440V
  • HZ: 50/60
  • Phase: 1/2/3 Ph
  • Total Power: 17.3 kw
  • OUtline dimensions: 1500*3450*3780mm

Packaging & Delivery

Packaging Details Standard package
Delivery Time 30 Days

Specifications

1.Car cleaning trolley Shot blasting machine
2.Competitive price good quality
3.No foundation
4.High efficiency
5.ISO9001

Q76 car cleaning trolley Shot blasting machine namey Q76 car trolley shot peening machine



1. Basic introduction:



Model NO. : Q765 shot blasting machine



Useage:  Suited for parts that are fragile, parts impingement is unacceptable. Table systems also are good candidates for parts that are large or do not lend themselves to tumbling.





2. Working principal:





Table wheel blast machines have a table that rotates beneath a blast wheel, or series of blast wheels within a cabinet enclosure. Table machines process a batch at a time. Occasionally parts may require a two step blast cycle - once the first step is completed the parts may need to be re-oriented on the table to allow for complete coverage from the blast wheel.





Standard table blast machines range from 48" diameter table size up to 84". Table wheel blast models bigger than 84" diameter are available should your process require a larger machine.





No.ItemvalueQ3512QF3512Q3525F
1Blasting chamber sizemmØ 1350*560Ø 1350*800Ø 2654*560
2Workpiece sizemm600*250*250600*250*500600*500*250
3Turn table loadingkg4004001000
4Turn table Dia.mmØ 1200Ø 1200Ø 2500
5Abrasive flowing ratekg/min2002*1202*250
6Blast wheel powerkw117.5*215*2
7Elevating capacityt/h151530
8Separator capacityt/h151530
9Abrasive first loadingkg4003501500
10Ventilation capacitym3/h280028005200
11Outline dimensionsmm1500*3450*37801900*1900*41654260*3647*5366
12Total Powerkw17.318.735.2





We can do all kind of shot blasitng machine according customer's need

Before inquiry we hope you can send us the following information with your inquiry letter, so that we send you the technical drawing and technical proposal at the first time!.

1. The max. Length of the workpiece.
2. The max. Width of the workpiece.
3. The max. Height of the workpiece.
4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
5. The power supply you need( such as 380V, 3P, 50HZ)
6. Better to send us the workpiece photo or drawing.

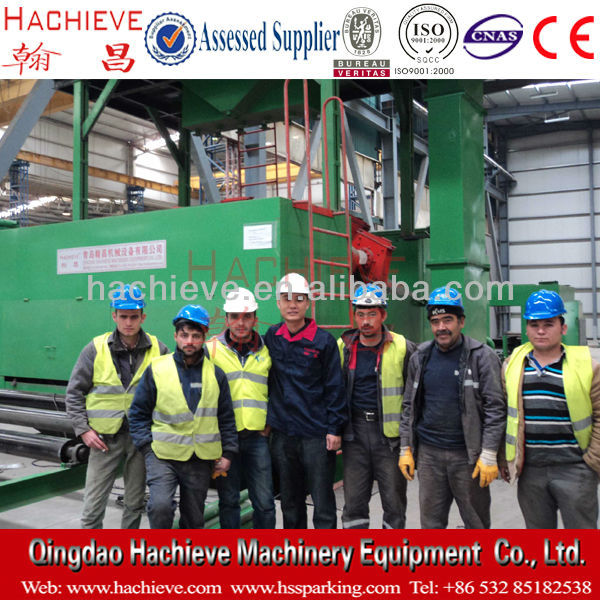

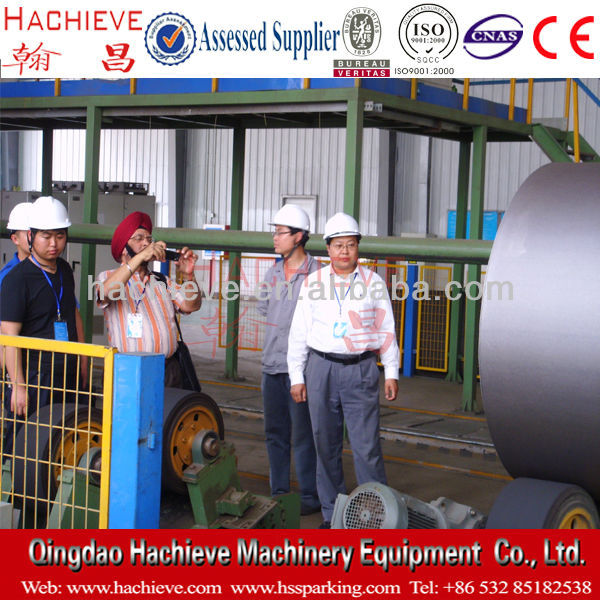

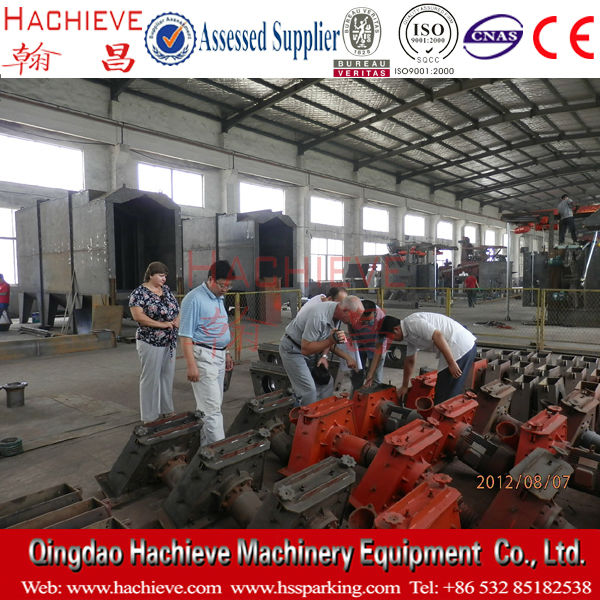

Some of our customer photo:
