Quick Details

  • Machine Type: Abrator
  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HACHIEVE
  • Model Number: Q38
  • Feature: Critical Cleaning / Residue Free, Rust / Corrosion Inhibitor
  • Fuel: Electric
  • Certification: CE, ISO, ALI
  • Use: Burnishing, Descaling / Stripping
  • Cleaning Process: Abrasive / steel shot ball
  • Cleaning Type: High speed blasting
  • Industry Used: Machinery manufacturing, Casting, foundry
  • Material: Metal, casting
  • Power(W): 20~200kw
  • Dimension(L*W*H): According the workpiece size
  • After-sales Service Provided: Engineers available to service machinery overseas
  • PLC Control: viable
  • Operate Type: Auto/ Manual
  • Single Hook loading: More than 600kgs
  • Hook Qty: >= 1
  • Track type: Ring or double or single
  • Blasting speed: 0.5-3m/min
  • Blast wheel Qty: 4-16
  • Blast wheel motor: 7.5~75KW
  • Voltage: 220/380/440V
  • HZ: 50/60Hz

Packaging & Delivery

Packaging Details: Export standard packing
Delivery Detail: 30 days

Q48 series hanging chain type shot blast machine



This series hook type shot blast cleaning machine, is mainly used for casting, structural, non-ferrcus alloy parts and other parts of the surface cleaning, shot blasting cleaning machine of this series at a single hook, double hook-type, , lifting style and many other models. It has the advantages of not pit, compact structure, and high productivity.



This Type shot blasting machine Technical:

Item

Unit

Q383C

Q384C

Q385C

Productivity

Hook/h

50,65 38,49

70,80

75

Hook running speed

m/min

0.5,0.65

0.8,0.93

0.65

Single hook Loading

kg

250

400

500

Hook distance

mm

600,800

800

800

Abrasive follow rate

kg/min

4×250

6×250

5×250

Total ventilation

m3/h

18000

26500

23700

Workpiece Size

mm

Dia. 500×1200,

Dia. 700×1200

Dia. 700×1500

Dia. 700×1500

Outline dimension

mm

11764×5525×8254

15308×14706×9542

11783×10063×7500

The depth of the pit

mm

2070

2667

1700

Power consumption

kw

75.3

122.6

106.75

Total Weight

Kg

19370

53600

31877



Same model technical for reference

TypeQ376Q376BQ378CQ3710Q3720Q3730Q3750Q37100
Maximum weight of cleaning(kg)500600800100020003000500010000
Maximum overall dimensions of suspender(mm)600X1200700X12001000X16001200X18001400X22001600X23001800X25003000X3000
Abrasive flow rate(kg/min)2X2002X2002X2502X2503X2503X2504X2505X250
Lifting amount of elevating conveyor(T/h)2424303045456075
Separating amount of separator(T/h)2424303045456075
Total power(kw)22.523.539.6547.556.265.4585.4597.65
Ventilation capacity(M ³ /h)40004000500050009000110001400016000





If the above model not suit for your workpiece, please tell me your need and the following information then we will send you the best technical drawing  to you.



1. The max. Length of the workpiece.



2. The max. Width of the workpiece.



3. The max. Height of the workpiece.



4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)



5. The power supply you need( such as 380V, 3P, 50HZ)



6. Better to send us the workpiece photo or drawing.

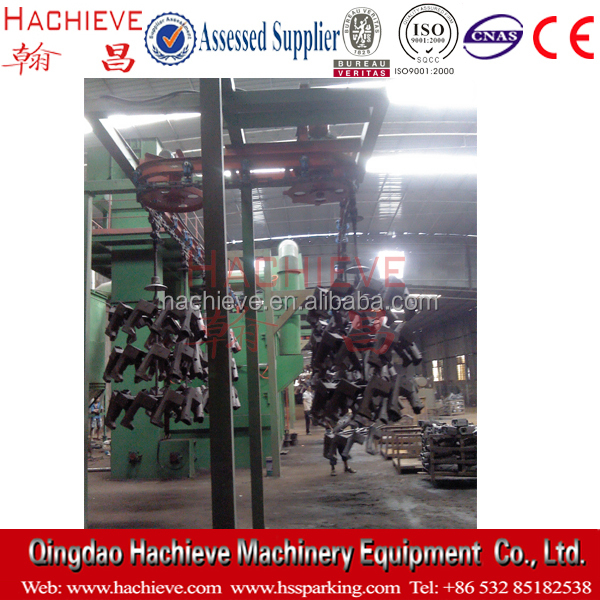

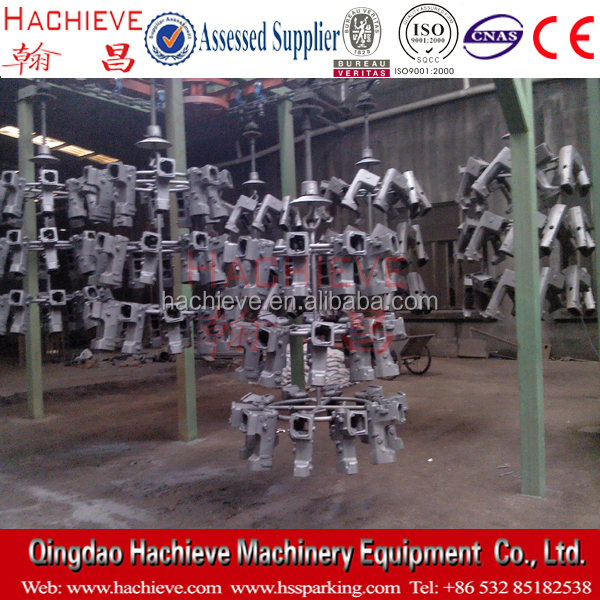

Product photo for reference









Company Information

Qingdao HACHIEVE. has been doing business more than 20 years. We have hundreds of shot blasting machines and component retrofits in operation in China and abroad serving every industry that utilizes blast cleaning technology.

Manufactured to meet your needs. Systems include:

• Structural Steel
          • Overhead Conveyor
          • Roller Conveyor
          • Work Car
• Steel Drum & Lid

• Plate Steel
• Plate Preservation Lines
• Bar & Wire/Coil Steel
• Wind Tower
• Rail Car

• Foundry
          • Table Blast
          • Tumble Blast
          • Spinner Hanger

Put our experience and expertise in the shot blast industry to work for you!
